Controlling a light from more than one location requires more than a standard wall switch.
3 way and 4 way lighting systems use traveler wires, common terminals, and specific wiring layouts that vary depending on how the home was originally wired. When installed incorrectly, these systems can cause:
- Lights that only work from one switch
- Switches that work upside down
- Flickering or intermittent power
- Breaker trips
- Smart switch failures
At Allstar Electrical, multi-location lighting systems are installed and diagnosed by a licensed Master Electrician — not an apprentice working alone. We serve Denver, Cherry Hills, Greenwood Village, and surrounding communities.
What Is a 3 Way Switch?
A 3 way switch allows one light fixture to be controlled from two different locations.
Common Examples:
- Top and bottom of staircases
- Long hallways
- Master bedrooms (door + bedside switch)
- Large living rooms with multiple entrances
How It’s Different from a Standard Switch
A standard single-pole switch has:
- One hot wire in
- One switched hot wire out

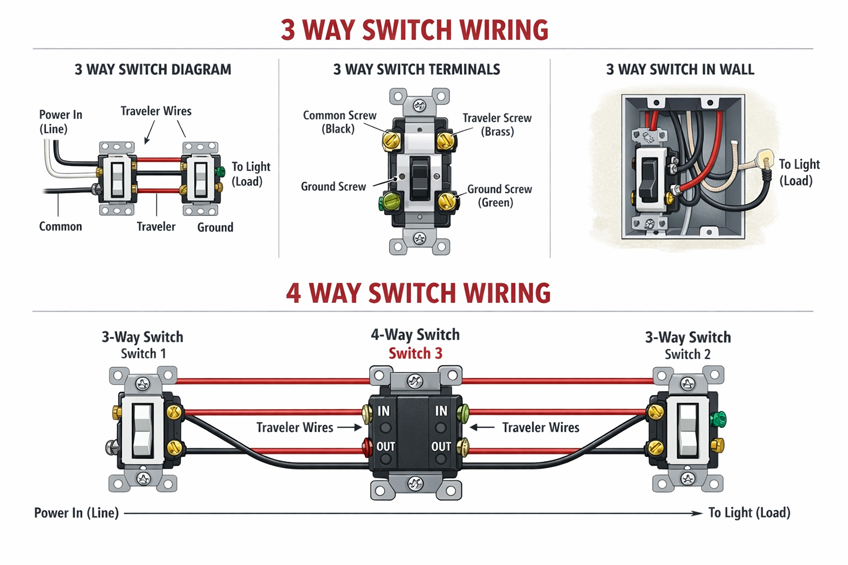

A 3 way switch has:
- One common terminal
- Two traveler terminals
- Equipment ground
Instead of simply turning power on or off, 3 way switches redirect power through traveler wires depending on switch position.
What Is a 4 Way Switch?
A 4 way switch allows control of the same light from three or more locations.
Important:
A 4 way switch must be installed between two 3 way switches.
It has four terminals, but no common screw.
It internally crosses or passes through traveler wires.
You cannot replace a 3 way switch with a 4 way switch without reconfiguring the entire circuit.
Why Multi-Location Switches Are More Complex
Unlike a standard switch, 3 way and 4 way systems can be wired in several different configurations, including:
- Power entering at the first switch
- Power entering at the light fixture
- End-line switching
- Switch loop configurations
- “California 3 way” method
Each layout changes which conductor is truly the common.
In older Denver homes (especially pre-1995), we frequently see:
- White wires re-purposed as hot without proper marking
- No neutral wire present in switch boxes
- Backstab connections that loosen over time
- Remodel wiring that violates code
This is why trial-and-error replacement often fails.
Common 3 Way & 4 Way Switch Problems
We regularly receive service calls for:
Light Only Works in One Position
Typically the common wire is misidentified.
Smart Switch Won’t Work
Many 3 way boxes lack a neutral conductor.
Flickering or Intermittent Lighting
Loose traveler wires or worn internal contacts.
Breaker Trips After Replacement
Incorrect wiring between common and traveler.
Warm Switch Plate
Possible loose connection creating resistance heat.
If you experience any of these issues, the circuit should be professionally diagnosed.
Installing Smart Switches in 3 Way Systems
Smart switches are one of the most common upgrades in Denver homes.
Challenges include:
- No neutral wire present
- Incompatible traveler wiring
- Incorrect load location identification
- Multi-wire branch circuit complications
We ensure:
- Proper neutral availability
- Correct wiring diagram selection
- Manufacturer-compliant installation
- Code-compliant grounding
Electrical Code Considerations in Denver
Under NEC standards adopted in Colorado:
- All splices must remain accessible
- Equipment grounding is required
- Proper conductor identification is mandatory
- Stairways with six or more risers require lighting control at both levels
Improper 3 way wiring is one of the most common corrections required during inspections and remodels.
Can a 3 Way Switch Be Converted to Single Location?
Yes — but it requires:
- Re-routing the load conductor
- Safely terminating unused travelers
- Maintaining grounded conductor continuity
Improper conversion can leave energized conductors hidden behind drywall, creating shock or fire hazards.
Why Choose Allstar Electrical?
| Handyman or DIY | Allstar Electrical |
|---|---|
| Trial-and-error wiring | Circuit traced and verified |
| Misidentified common wire | Master Electrician diagnosis |
| Possible code violation | Code-compliant installation |
| No warranty | Professional workmanship guarantee |
| Limited troubleshooting skill | Advanced electrical diagnostics |
Every lighting system we install or repair is handled by a licensed Master Electrician.
